A 1650mm Flying Shear Cut-to-Length Line converts coil into finished sheets through one coordinated flow. Uncoiling, guiding, leveling, length measurement, dynamic cutting, conveying, and stacking must respond to the same production requirement. The RONGXING 1650mm Flying Shear line is reviewed as a complete system rather than a collection of isolated machines.
Continuous material flow depends on every section
The strip enters from the coil-handling end and is centered before leveling. Leveling settings depend on material grade, thickness, width, incoming shape, and the required finished flatness. Stable guiding helps the strip remain aligned as it moves toward the measuring and cutting sections.
The Flying Shear Cut-to-Length Line family includes different working widths, but model selection is only the starting point. Coil weight, material strength, sheet length, surface condition, production target, stack weight, foundation, and available workshop space all influence the final configuration.
Measurement, cutting, and sheet transfer are coordinated
The measuring system tracks strip travel and sends the cutting command according to the production recipe. During the normal cycle, the Flying Shear coordinates its movement with the strip so the finished sheet can continue toward the conveyor. The Flying Shear working-principle guide explains this relationship between encoder feedback, motion control, and the cutting point.

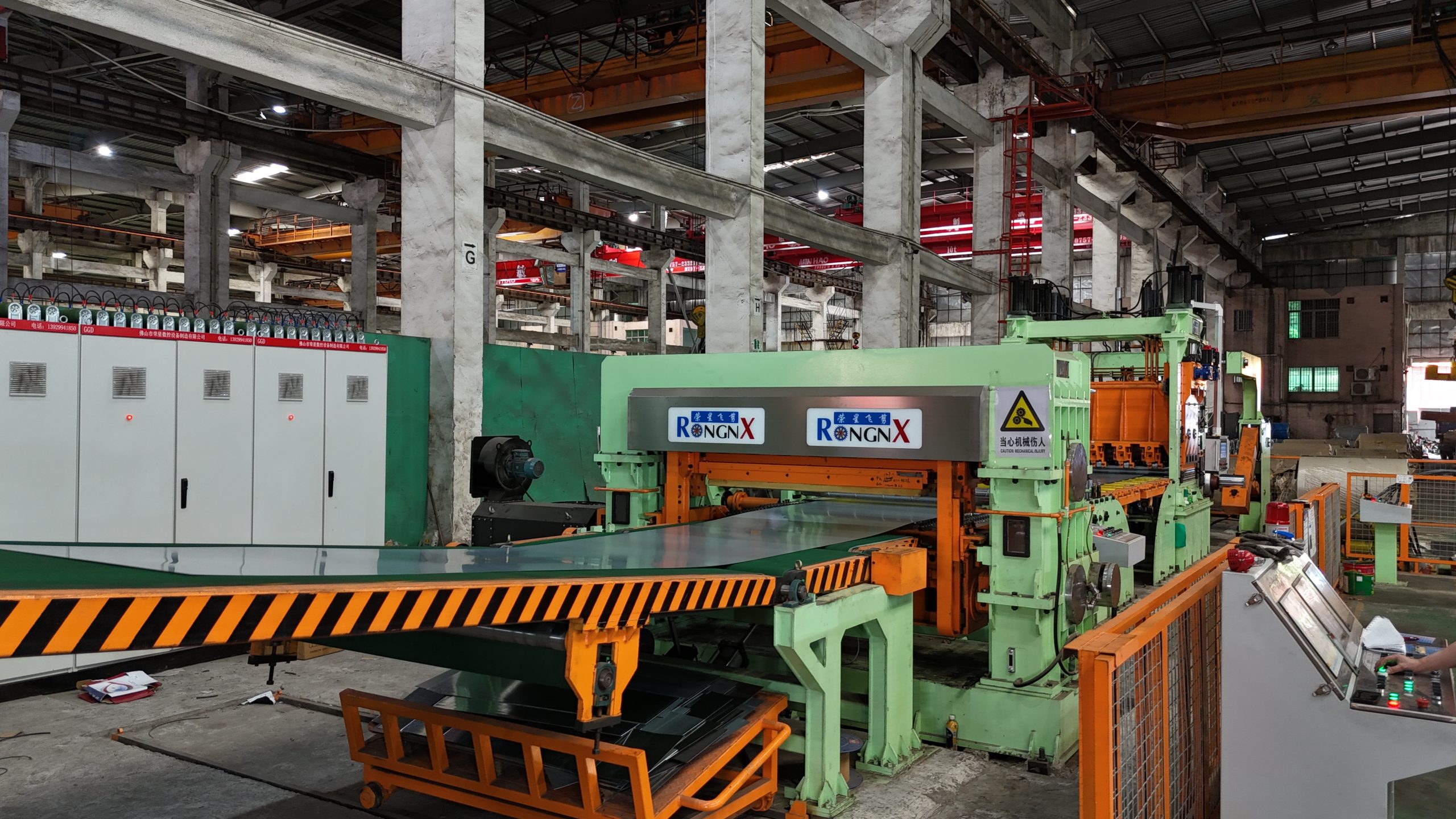

After cutting, the conveyor supports the sheet and maintains controlled transfer toward the downstream handling area. Sheet spacing, alignment, support, stacking, and removal should match the finished dimensions and output target. A fast cutting cycle is useful only when the downstream system can receive each sheet reliably.

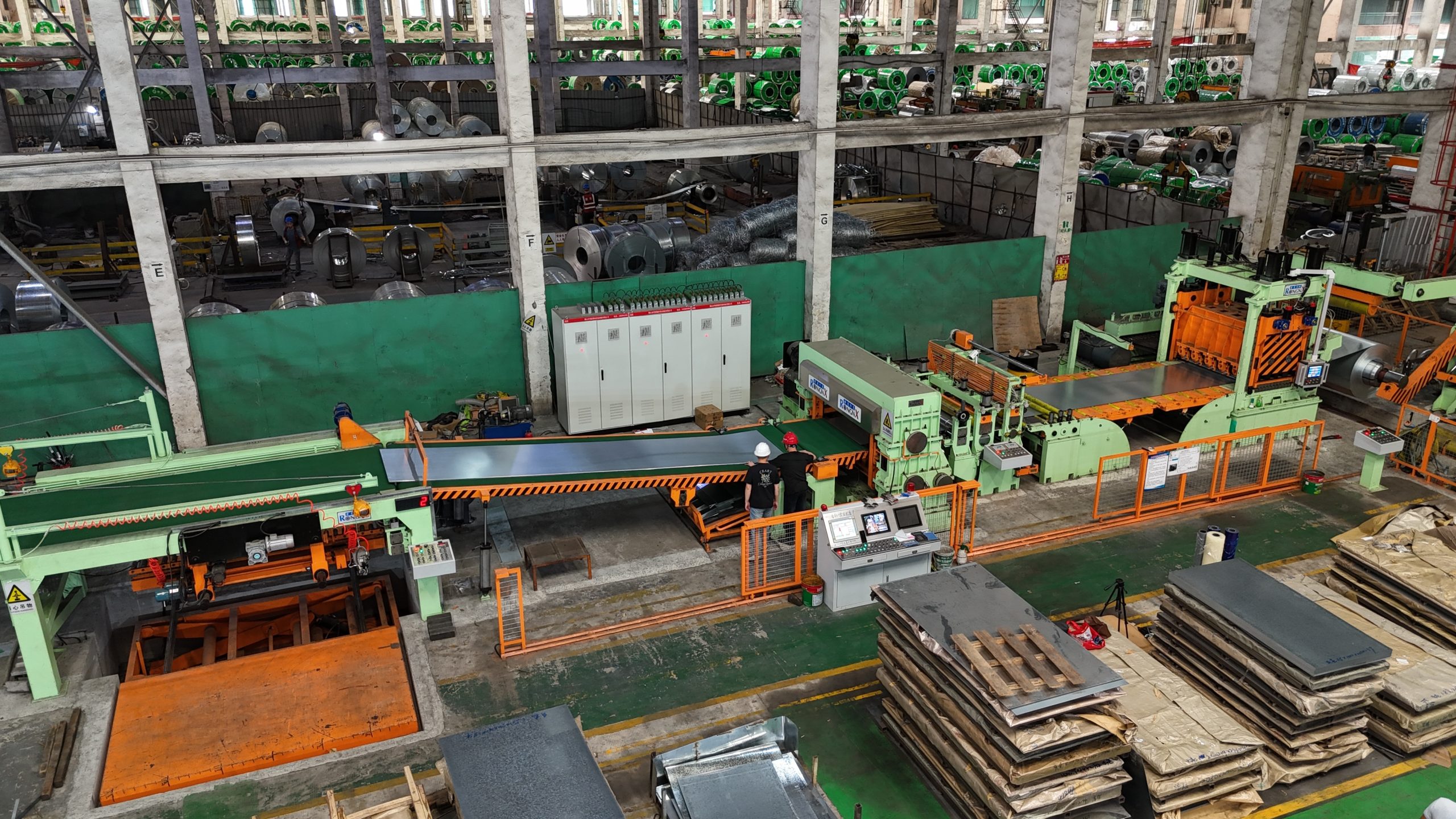

Production images support project evaluation
Real production images help buyers understand line layout, operator access, guarding, controls, material flow, and finished-sheet handling. They should be considered together with verified project data rather than used as a substitute for technical specifications.
A quotation review should include material grade and strength, normal and maximum width and thickness, coil dimensions and weight, finished sheet sizes, quality requirements, target output, stack method, workshop layout, and utilities. Installation and operator preparation can then be planned through the actual RONGXING service scope.
To review a 1650mm Flying Shear project, send the coil, finished-sheet, and site requirements.
